Brick Forge Kit with Gas Forge Small Burner with Hose and Regulator 41mj/hr

AU $240.90

Brick Forge Kit with Gas Forge Small Burner with Hose and Regulator 41mj/hr. Available in both POL and LCC cylinder connections.

SKU: KMBF-S-HR
Clear

Description

Gas Forge Small Burner with Hose and Regulator 41mj/hr.

Gas forges are becoming more and more popular in the Australian Blacksmithing and blade-smithing community. Gas Forge Burners and Components are clean and no fuss, heat up quickly and have excellent control of temperature almost eliminating burnt jobs. Designed for smaller knife-making forges these burners are a fantastic option for the knife maker.

Features and Benefits

  • Economy 1/2” burner, 50mm Diameter , 300mm long, ideal for a cylindrical forge, with internal dimensions of 150mm diameter and 200mm length
  • Elbow on end of burner keeps shut off valve away from heat for safe and easy shut off
  • 2m high pressure rated hose with a 3/8″ SAE female connection, to connect onto small burner
  • Adjustable regulator outputs between 0-60 PSI, allowing for easy temperature and flow adjustment
  • Available in both POL and LCC cylinder connections
    • POL has an internal thread on the cylinder valve and is the common thread connection up until recently
    • LCC has an external thread on the cylinder valve and is the new style connection that will be replacing the POL connection in a 10-year changeover
    • All new cylinders, as well as any bottles being retested now come with the LCC connection as standard on the cylinder valve
    • The existing POL valves on older bottles and burners can still be used, and the new LCC valves on cylinders are backwards compatible as they have the POL thread on the inside

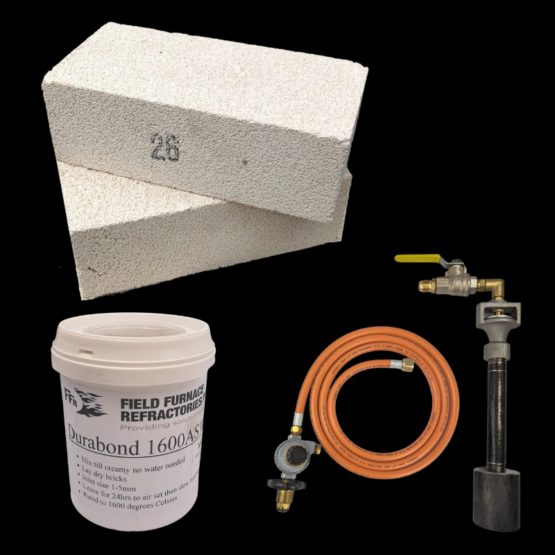

This Kit Includes:

  • 8x K-23 or K-26 refractory bricks with dimensions approx. 230 x 115 x 75 mm and with a working temperature of up to 1420C
  • 2kg bucket of high-temperature refractory mortar
  • Gas Forge Small Burner with Hose and Regulator 41mj/hr

Please Note:

K-26 bricks do an incredible job of containing high temperatures, but they are soft and fragile and they break down over time. They can crack from having moisture in the bricks that expands as they heat up fast. You can reduce this by heating them slowly to allow the moisture to evaporate before it boils, but some cracking is also an inevitability with soft fire bricks. They still work when cracked and they can be patched with refractory mortar.

When used with a gas burner we recommend running it at a low pressure with the air inlet mostly closed for 5 or so minutes, before turning up the pressure or opening up the air inlet. Do this the first time you use a burner with your bricks, especially if they are stuck together with refractory mortar, and also after any period of damp weather. If you see steam rising from your bricks they are wet and you should lower the heat until they stop steaming.

Rules and laws on gas forges vary from state to state and it is normally mandatory that your forge comply and be approved to your state authority’s requirements. Make sure you contact your local specialist gasfitter and authority to ensure your design complies with all local requirements. All parts are manufactured to, and comply with all relevant standards, however you need to ensure the appliance you build complies in your state for your application.

Gas Forges should only ever be used in a well-ventilated space. Check all connections for leaks using soapy water.

All goods are sold in accordance with Gameco’s Terms and conditions of sale. Both these and Product Warnings can be found here: http://gameco.com.au/index.php/terms-of-sale/

Watch Pask Makes on YouTube make a 9kg gas cylinder forge using one of our refractory kits and burners!

Additional information

Weight 15 kg
Dimensions 57 × 38 × 25 cm
Connection Type

POL, LCC

6 reviews for Brick Forge Kit with Gas Forge Small Burner with Hose and Regulator 41mj/hr

  1. 5 out of 5

    dropbearknives

    Just put my kit together, after using a coffee can forge over the last few years I’m not dissapointed in the upgrade. Wow, what a difference the firebricks make. This will give me alot more heat to build and heat treat larger knives. That single burner is powerful and I can easily upgrade to a double burner if need be. Thanks for the quick delivery too.

  2. 5 out of 5

    J.J.Martin

    Great little setup when you’re just starting out. For blacksmithing or knife making, its fairly cheap and is helpful when you’re not really sure what you are looking for.
    I recommend that if you’re wanting to start blacksmithing this kit is the place to start!

  3. 5 out of 5

    Andrew Grant

    Very good starter forge. I went from a charcoal forge to this, and it is a different world. This forge gets very hot very quickly, you won’t be waiting long in between heats.

  4. 5 out of 5

    Konrad Robertson

    Great kit for a beginner. Quality components and easy to use.

  5. 5 out of 5

    Robin

    A great kit for a small forge.

  6. 5 out of 5

    thomas.bunston

    Pretty good value, gets plenty hot enough for some basic forging and heat treating.
