CS-14D Clam Shell
- Additional information
- Reviews (0)

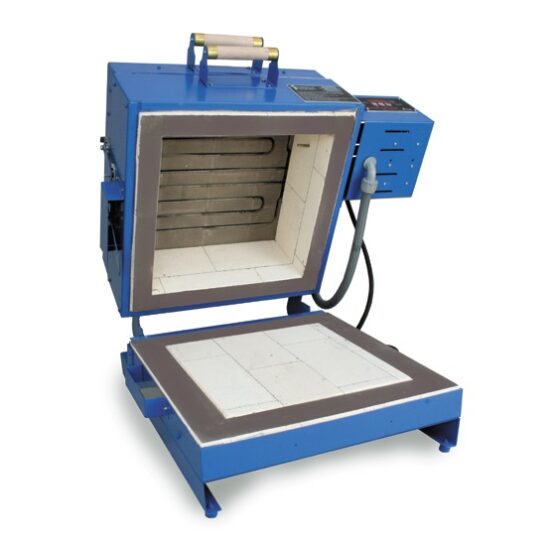

Paragon CS-14D Glass Fusing Kiln Paragon’s square CS-14D digital glass clamshell kiln operates on a standard household outlet and fires up to nine 4” x 4” glass tiles. Imagine the murals you could make with this kiln. Fire small glass bowls, pendants, earrings, cufflinks, and even bracelets. Try out the newest glass techniques. Enjoy glittering dichroic glass. Make gifts that your loved ones will treasure. When you own a Paragon CS-14D clamshell, you can experiment with glass fusing to your heart’s content. The CS-14D heats from the top for even heat distribution across the glass surface. The lid elements are mounted in pinless element grooves. Element pins are no longer needed because the element coils are wider than the groove opening. This helps eliminate dust in the firing chamber. Kiln Lifts Out of the Way for Easy Loading The kiln lifts up and out of the way so you can assemble glass pieces inside the kiln. Add stringers and frit to delicate designs. When the kiln shelf is loaded and you are ready to fire, lower the kiln in place. The kiln is easy to open because of two counter-weight springs mounted under the kiln. The kiln base extends 4” in the back to support the weight of the kiln when in the open position. The base comes with mar-proof rubber feet. The CS-14D is dual-opening: You can open the kiln by lifting the kiln body or by lifting only the lid. Lift the kiln body out of the way to assemble glass directly on the shelf; open the lid to load glass over a slumping mold. The clamshell kiln can be opened by lifting the kiln body or the kiln lid, but never both at the same time. The kiln is equipped with safety latches on the side. The gravity-operated top latch holds the lid closed; the lever-operated bottom latch holds the kiln body closed. Protective Steel Lid Cover The top of the lid is protected with a painted sheetmetal cover. The sheetmetal is bent to cover the sides of the lid, and the steel is welded at the corners. You will be amazed at the sturdy construction that has made Paragon kilns renowned. The self-adjusting lid floats at fusing temperatures. Optional Ceramic Fiber Top The standard CS-14D comes with an insulating firebrick top. You can also upgrade your kiln with the optional deluxe ceramic fiber top, which has the same type of pinless groove as the standard top. The fiber top helps keep the kiln interior even cleaner. Reliability at the Heart of the Kiln The CS-14D has a two-year warranty. The temperature sensor, called a thermocouple, is sheathed with high-nickel stainless steel for long life. A heavy steel base supports the reversible brick bottom completely. These features are extra assurance that your Paragon kiln is built to last. No extra stand is needed. The reliable CS-14D has dual mechanical relays for long life. The digital controller sends a signal to the relays to turn on the heating elements. The two relays in the CS-14D last longer than the single relay of competitive kilns because of the reduced amperage going through each relay. Convenient Features For your convenience, flip the switch on the front panel to turn off power to the controller when the kiln is not in use. The large, comfortable wooden lid and kiln handles stay cool. The CS-14D is painted with a durable high temperature, water-base finish. We chose water-base paint because of the low emissions during spraying. This creates a safer working environment for our employees and cuts down on pollution. Note: The bead door and high-temperature glass window are not available on the CS-14D. However, they are available on the CS-14S. The Ease of Digital Firing You will be amazed at the convenience of digital firing. The reliable solid-state Sentry Xpress controller continually monitors the firing so you do not need to closely watch the kiln. (Please remember, however, to check the kiln occasionally during firing and to monitor it near the expected shutoff time.) You can try out a demonstration of the controller on your computer by clicking here. Paragon’s innovative controller will help you achieve consistent results from one firing to the next. The controller has powerful features that you will enjoy using. Yet the controller is also easy to learn. The reliable Sentry Xpress 3-key controller includes two modes: Single Speed and 8-segment Ramp-Hold. Control both heating and cooling with simple 3-key operation. Features of the Sentry Xpress 3-key Controller on Paragon CS-series Kilns
- Program up to 8 segments (steps) in Ramp-Hold mode.
- Fire to a single temperature at a single speed in Single Speed mode.
- Store up to 4 programs in Ramp-Hold mode.
- Skip a segment in Ramp-Hold without having to stop the kiln to reprogram. (For instance, you want to skip to the annealing segment.)
- Change the target temperature in Ramp-Hold during firing without stopping the kiln to reprogram.
- Hold (soak) the temperature in both Single Speed and Ramp-Hold.
- Add Hold Time during firing without having to stop the firing to reprogram.
- Easily control both heating and cooling in Ramp-Hold.
- Program Review lets you check the program you are about to fire.
- Program the Temperature Alarm to sound when the kiln reaches a specific temperature. Program an alarm that will remind you to check on the kiln.
- Temperature display throughout firing and cooling in your choice of °F or °C
- Thermocouple Offset adjusts the thermocouple readout.
- Set the Delay to turn on the kiln at a time that best suits your busy schedule.
- Error Messages report mechanical problems.
- The sealed touch pad keeps out dust and is easy to wipe clean.
- LED Lights show whether you are in program, review, or firing mode.
- Colorful, illustrated instruction manual. Download it from the “Additional Information” section below to review all the controller features in more detail.
Paragon kilns are made in America to exacting standards. The CS-14D can ship by UPS within the United States to give you a lower shipping cost and faster service. A specially designed carton and foam padding assure that the kiln will arrive safely. (Please note: The CS-14D is in an oversized box to insure that it arrives safely. The size incurs an extra UPS charge.) The CS-14D Furniture Kit (Sold Separately) Glass must be fired on a ceramic shelf; never directly on the kiln firing chamber bottom. 1 – 12” x 13” x 5/8” Shelf 4 – 1” wide Square Posts, ½” long 1 lb. Bag Glass Separator
Designed for production
Paragon’s warranty is not affected by frequency of use. Fire your new kiln every day if you want, even in commercial settings. That will have no effect on the warranty period.
Optional colors at no extra charge
Brighten your studio with color! Order your kiln in one of our standard colors at no extra charge . . . berry, black, blue, hot pink, jade, navy, purple, or turquoise. Scroll down to see color samples in the options section.
|Dimensions||83.8 × 78.7 × 61 cm|
