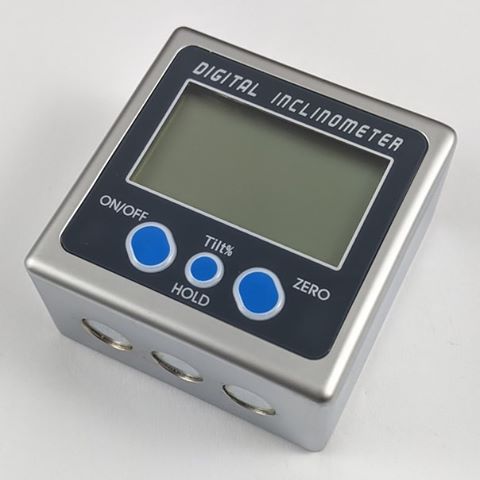

Digital Bevel Box Inclinometer



Availability: In stock SKU: KMBEV
View cart


Aluminium body front and back, battery compartment accessed by releasing 4 screws. Absolute or relative readings may be taken by zeroing the unit to the desired surface. Built in magnets make it perfect for use on steel platens, drill tables and band saws. Powers off automatically in 5 minutes.


  1. Measuring range: 4*90 degrees
  2. Resolution: 0.05°
  3. Accuracy: ±0.2°
  4. Repeatability: 0.1°
  5. Comes with 9V battery
  6. Working temperature: 0°C-40°C
  7. Dimension: 57*57*30.5mm
  8. With 3 built-in magnets
  9. Absolute zero measurement based on the horizontal surface
  10. Net weight:0.21kg


Additional information

Weight 0.275 kg
Dimensions 9 × 8 × 4.5 cm

1 review for Digital Bevel Box Inclinometer

  1. 5 out of 5


    Great bit of kit for getting the correct angle on your platen.
