Electronic Rockwell Hardness Tester BULK BUY ~1 month wait

$1,999.00

Availability: In stock SKU: BBB-KMRCT
View cart

Description

Electronic Rockwell Hardness Tester BULK BUY ~1 month wait

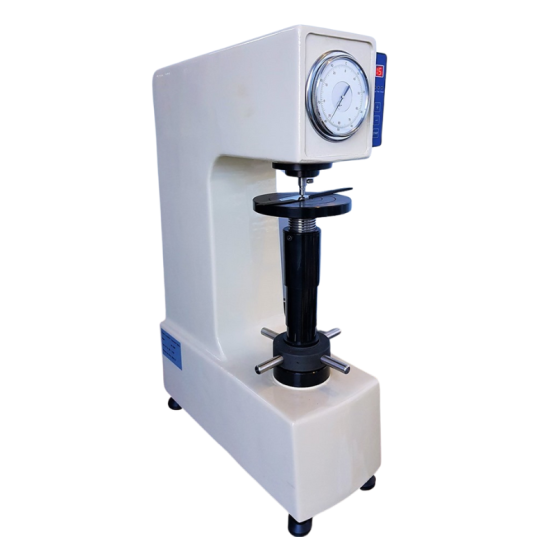

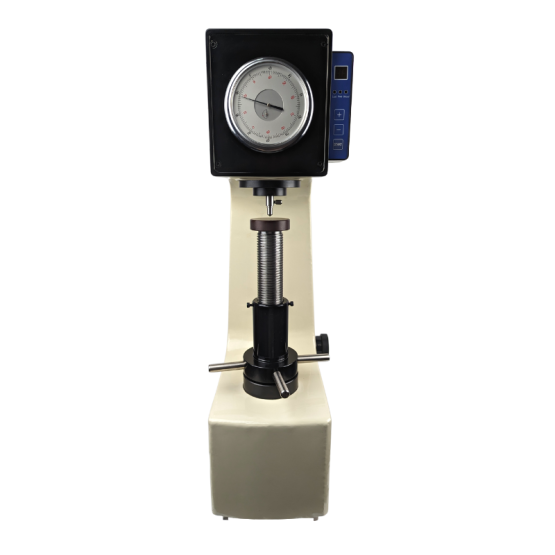

Bench mounted electronic Rockwell hardness tester, the absolute best way to test hardness in your workshop. Offers in house guarantee that you have achieved the desired heat treatment or the flexibility to experiment with new methods of hardening and tempering. Gives you the piece of mind to accurately quote blade hardness to your customers.

Freight will be quoted at checkout.

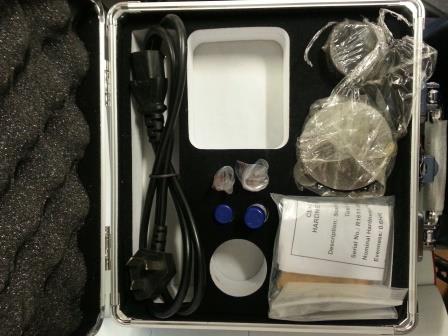

Comes with:

  • Australian power cable

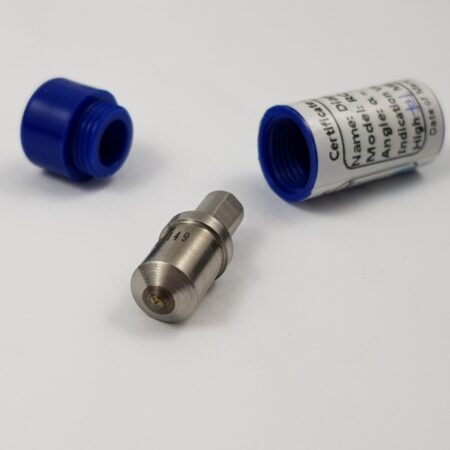

  • Diamond indenter for Rockwell C hardness testing
  • Ball indenter for Rockwell B hardness testing
  • Spare fuse
  • V block anvil for holding round jobs
  • Small flat anvil
  • Wide flat anvil

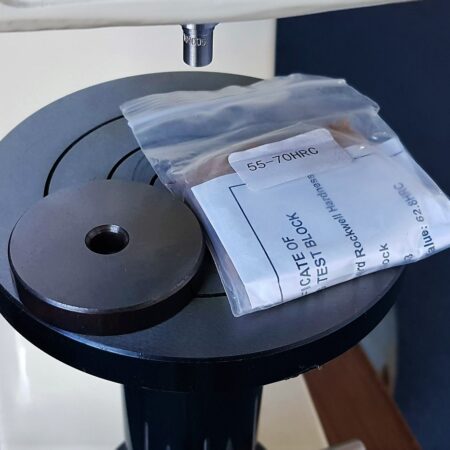

  • Rockwell calibration test block
  • Carry case for spare parts
  • Product certificate

Technical Specifications:

Hardness Scale HRA, HRB, HRC, HRD, HRF, HRG
Initial Test Force 98.07 N (10kgf)

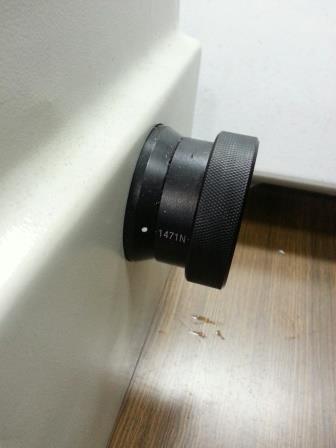

Total Test Force 588.4N (60kgf), 980.7N (100kgf), 1471N (150 kgf)
Test Force Selection Manually
Test Force Control Automatic (Load / Keep / Unload)

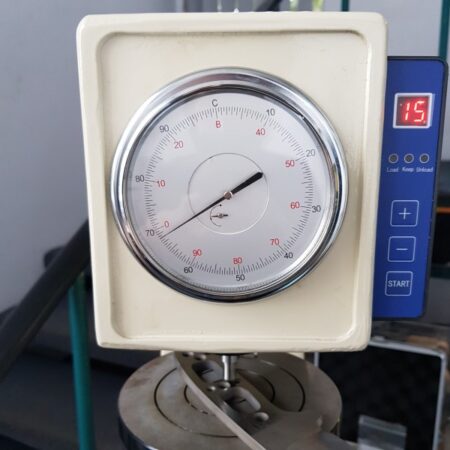

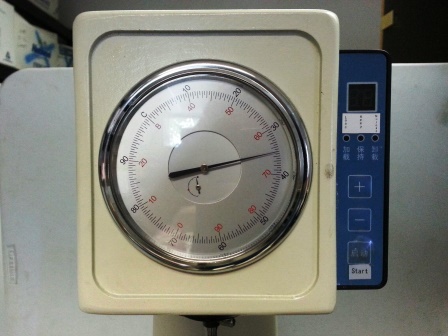

Indicator Scale C: 0-100 , B 30-130
Measuring Range HRA: </= 95, HRB: 20-100 HRC: 20-70
Hardness Accuracy 0.5 Rockwell
Accuracy Requirements Meet EN-ISO6508 and ASTME-18
Max. Height of Specimen 200mm
Distance of Indenter Centre to the instrument Body 152mm
Operating Temperature 10-38 degrees celsius
Power Single Phase AC 220V, 1A, 50-60HZ
Dimension of Body 460 L x 188 W x 678 H
Weight 80kg

Specifications as shipped: 94kg 870 x 560 x 410mm

Additional information

Weight 94 kg
Dimensions 87 × 56 × 41 cm
