Extra Large Gas Forge Refractory Kit (45kg Gas Cylinder Body)

$769.00

Extra Large Gas Forge Refractory Kit (45 kg Gas Cylinder Body).

Availability: Only 1 left in stock SKU: KMFK3
View cart

Description

Extra Large Gas Forge Refractory Kit (45 kg Gas Cylinder Body).

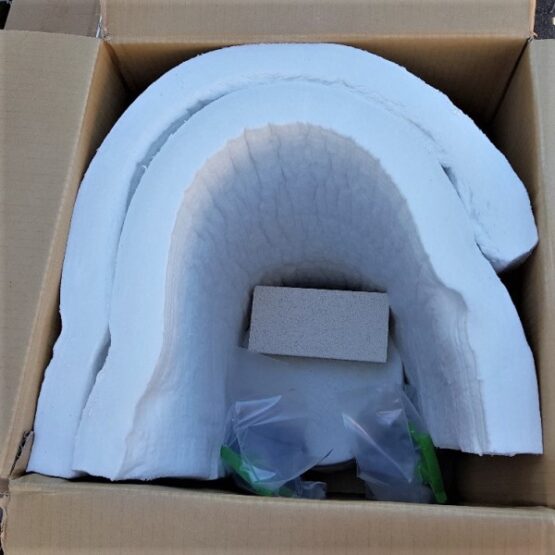

Kit Includes:

  • 2 pieces 50 x 600 x 900mm lengths of Isowool
  • 2 x 310mm diameter rounds of Isowool for forge ends
  • K-26 refractory brick measuring 75 mm x 115mm x 230mm

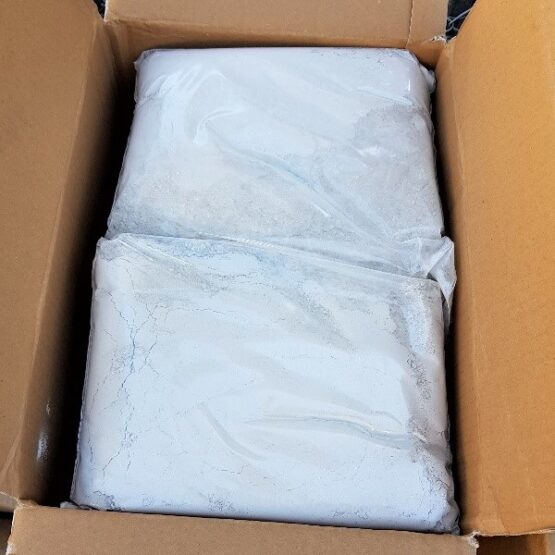

  • 13.2kg of duracast
  • 2 litres Rigidiser for Isowool
  • Material Safety Data Sheets

Gas forges are becoming more and more popular in the Australian Blacksmithing and bladesmithing community. Gas Forge Burners and Components are clean and no fuss, heat up quickly and have excellent control of temperature almost eliminating burnt jobs.

These burners are designed to function in a forge of a certain design, cylindrical shape, ceramic fibre insulation and open at both ends. Deviating from this design will result in a deviation in function and performance.

It is important to note that the rules and laws on gas forges vary from state to state and it is normally mandatory that your forge comply and be approved to your state authorities requirements. Make sure you contact your local specialist gasfitter and authority to ensure your design complies with all local requirements.

Gameco-Artisan Supplies sells burner kits of some of the more common designs. The equipment is manufactured to, and complies with all relevant standards however you need to ensure the appliance you build complies in your state for your application.

All gas forges should only ever be used in a well ventilated space. Check all connections for leaks using soapy water note that all goods are sold in accordance with Gameco’s Terms and conditions of sale and product warnings as can be found here: http://gameco.com.au/index.php/terms-of-sale/

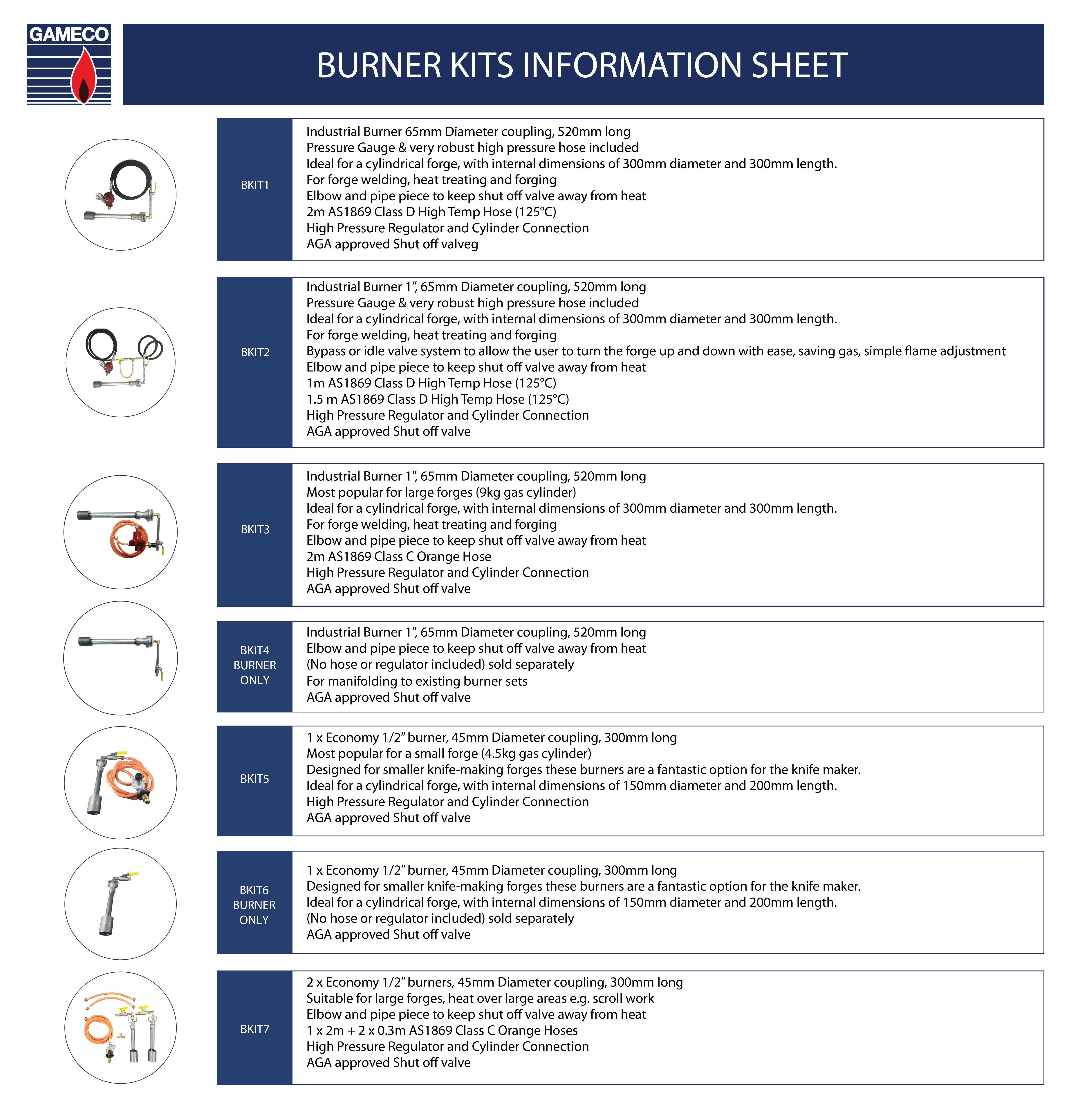

Find here an overview of all Gameco Artisan Supplies Burner KITS BKIT1-7 Gameco Artisan Supplies Forge Burner Information Sheet

Additional information

Weight 36 kg
Dimensions 83 × 46 × 46 cm
