Paragon PMT-21 Heat Treating Furnace

Paragon PMT-21 Heat Treating Furnace

$7,999.00

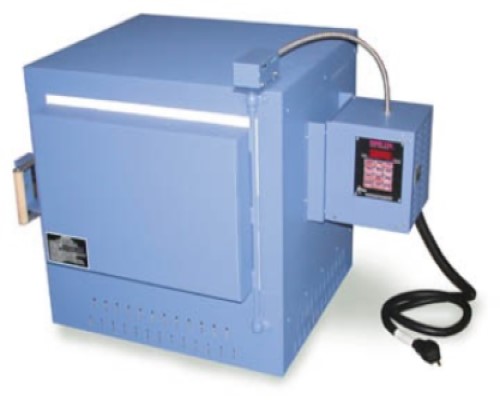

Paragon PMT-21 Heat Treating Furnace.

Availability: Only 1 left in stock SKU: PMT21
View cart

Description

Paragon PMT-21 Heat Treating Furnace. This is a very reliable front loading square digital electric furnace. Ideal for heat treating larger tools like axe and hammer heads, and machine components like dies, gears, and bushes. Capable of heat treating any carbon, tool and stainless steels, as well as being fully functional as a glass and pottery kiln.

Package includes

  • Paragon PMT-21 Heat Treating Furnace

Specifications
Power: 240V – 1 phase – 40 amp
Sides: 4
Internal size: (D) 533 mm x (W) 533 mm (H) 330 mm
Volume: 93.45 litres
Maximum Temperature: 1287 °C
Outer size: (D) 889 mm x (W) 1016 mm x (H) 711 mm

Suitable for

  • Knifemaking
  • Industrial heat treating
  • Ceramics

Features

  • Made in America and individually assembled by master kiln builders.
  • Furnace is insulated with refractory firebrick
  • Elements mounted in dropped, recessed, grooves machined into the firebrick. Groves protect the element, resulting in a longer life and lower maintenance
  • Easily replaceable elements as they are exposed, not embedded
  • Steel case painted in high temperature blue that protects the firing chamber
  • Built-in stand that lifts the firing chamber safely off a worktable (no extra stand required)
  • Heavy-duty hinged door for easy, smooth opening
  • Micro-switch to turn power to elements off when door is open
  • High temperature wire in switch box for a longer life
  • Heat shield mounted between the furnace and switch box. Keeps switch box components cool, even during longer use periods. To further dissipate heat, the switch box is extra-large and generously louvered

NOTE: Australian power plug not included. An Australian standard 40+ amp power plug must be fitted to this kiln by a licensed electrician

Additional information

Weight 192.33 kg
Dimensions 99.1 × 111.8 × 81.3 cm
