Paragon TNF823 Kiln with Furniture Set

$5,499.00

Paragon TNF823 Kiln with Furniture Set.

Availability: Out of stock SKU: TNF823FS

(E-mail when Stock is available)









Description

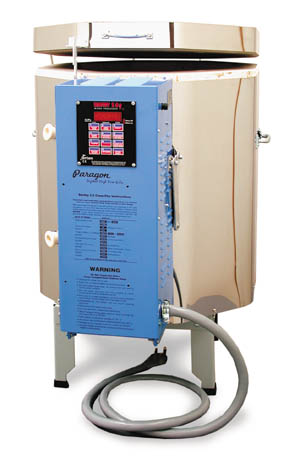

Paragon TNF823 Kiln. This is a very reliable top loading digital electric kiln. Large enough for most ceramic projects.

Package includes

  • Paragon TNF823 Kiln
  • Furniture set:
    • 3x C-18 shelves (381 mm (15”) round x 15.87 mm (5/8”))
    • 1x C-18H 1/2 shelf (381 mm (15”) round x 15.87 mm (5/8”) half)
    • 2.54 mm (1″) wide square posts, 4 of each – 12.7 mm (1/2”), 25.4 mm ( 1”), 50.8 mm  (2”), 76.2 mm (3”), 101.6 mm (4”), 127 mm (5”), 152.4 mm (6”) lengths
    • 0.45 kg (1 lbs.) bag of kiln wash
  • Heavy duty rolling stand, 457.2 mm (18”) square x 304.8 mm (12”) high

Specifications

Power: 240V – 1 phase – 30 amp

Sides: 8

Internal size: (D) 565 mm x (W) 419 mm

Volume: 83.53 litres

Maximum Temperature: 1287 °C

Outer size: (D) 719 mm x (W) 648 mm x (H) 953 mm (external kiln height includes a 241.3 mm tall stand)

Suitable for

  • China painting
  • Crystalline glazes
  • Decals
  • Dolls
  • Low-fire ceramics
  • Porcelain and stoneware

Features

  • Made in America and individually assembled by master kiln builders
  • Same circuit size as most of the Paragon Studio kilns. This makes transitioning to a larger Paragon kiln easier later on (won’t have to install a new circuit)
  • Long-life electrical system with high temperature wire
  • Lock-in lid support with a positive catch
  • 2 hand lifts
  • Dropped, recessed brick grooves that help prevent element bulging; eliminate the need for element pins; make changing the element easier and more efficient than some competing models that require element pins
  • 3” thick insulating firebrick sidewalls, lid and bottom
  • 2” high blank wall bricks in the top row. Since the brick is without element grooves, it is less susceptible to damage during loading than a grooved brick
  • Tapered peepholes for a wide view
  • Coated lid, peepholes and rim of firebricks for extended firebrick life
  • Fall-away two stage Prop-R-Vent for venting the ware
  • Sentry 12 Key Digital Controller
  • Easy-access drop down switch box with the removal of two screws. The box, hinged at the bottom, opens forward for easy maintenance
  • Ventilated, louvered switch box
  • Full-formed, galvanized steel base covers the entire reversible brick bottom
  • Safety switch on door

NOTE: Does not come with an Australian plug. Needs an electrician to wire a plug or hardwire into the wall.

Additional information

Weight 118.84 kg
Dimensions 71.9 × 64.8 × 95.3 cm
