Are you getting the “most” from your leather?
Don Gonzales from Don Gonzales Saddlery in West Bryan Texas explains how he gets the most from a side of leather when you are laying out your patterns.
Things you should consider before you stat cutting and what areas of the side are best suited for certain jobs.
this binding attachment is now available for both the CB4500 and 3200. This is an extremely handy accessory for anyone adding binding to the edge of your project.
It makes an otherwise frustrating job quick and easy.
YOUTUBE LEATHERWORKS HELPFUL HINTS
AN INTRODUCTION ON HOW TO DO BASIC HAND SEW SADDLE STITCHES ON LEATHER.
Hi guys, Rob here…
After speaking with a lot of knife makers over the last few years most of which told me when it comes to putting holes in leather for stitching they use a drill!! Coming from a leather work and saddle making back ground this is like swearing at me so I wanted to explain the correct way to saddle stitch and why drilling is not the best option.But of course, you don’t have to take my advice ?
It may seem easier to drill but it will result in a few things happening none of which are great.
Firstly, by drilling you are removing material from the leather and as a result making it weaker.
Second by having round holes your stitches won’t lay correctly if the holes are on the larger size they will end up laying like bricks.
And third if the holes are smaller your stitches will lay end to end in a straight line but usually what will happen if the drill bit is that thin it will flex and the stitches on the back side of your work will be a mess.
And never use a single needle to go in and out to the end and then back, this looks terrible and is very noticeable to any experienced leather worker.
Correct saddle stitching is very neat, tight, strong and looks good!
By using the correct tolls saddle stitch is not that hard and there are a number of books and videos on the subject. Please find a list of all tools and materials used on the bottom of the page.

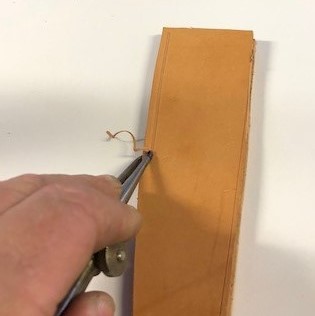

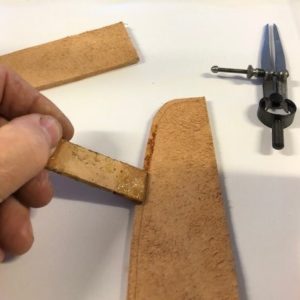

I start by having my work lying flat on my bench and marking my stich line either with a Stitch Groover or a pair of wing dividers. Make sure to mark both sides of your work (Front and Back) The Stitch Groover will remove a small channel in the leather and allow the stitches to be countersunk into your work. This is useful if the finished piece will be subject to a lot of ware. The wing dividers will mark a line on your work this will help to align your stitch holes.
Next, I will use glue or double-sided tape to join all of the layers of my piece together.

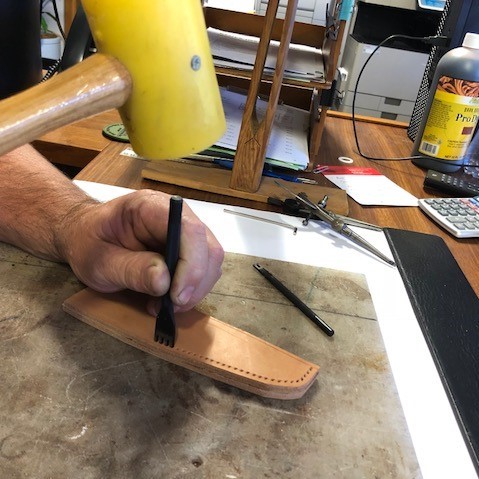

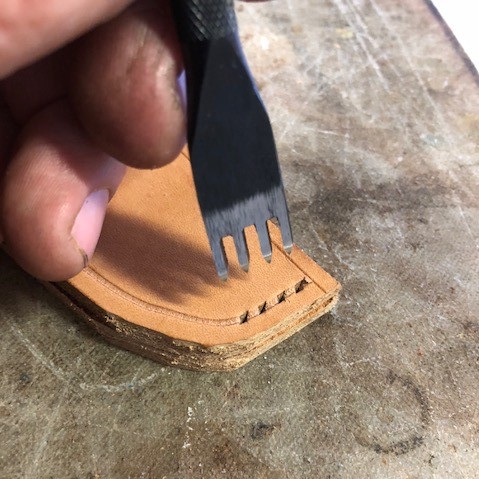

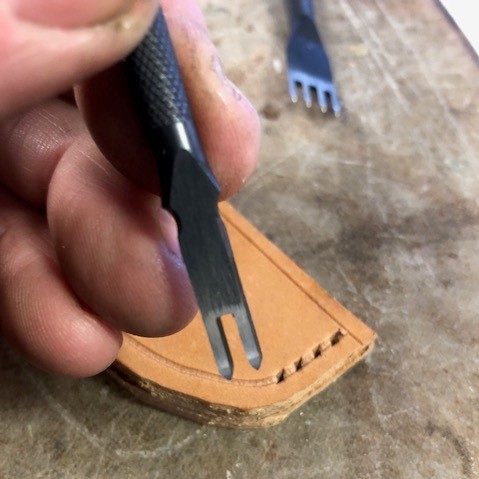

Then with either a stitching chisel or pricking iron proceed to make your stitch holes by taping the chisel through your leather making sure you stay on the line and keeping the chisel upright.

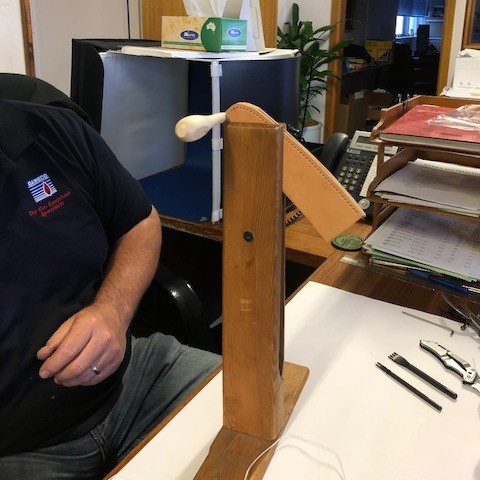

Depending on the number of layers in your job the chisel may not protrude all the way through (don’t worry about that at this stage) once you have made all of your holes and are ready to start stitching place your work into a stitching pony or saddlers clamp.

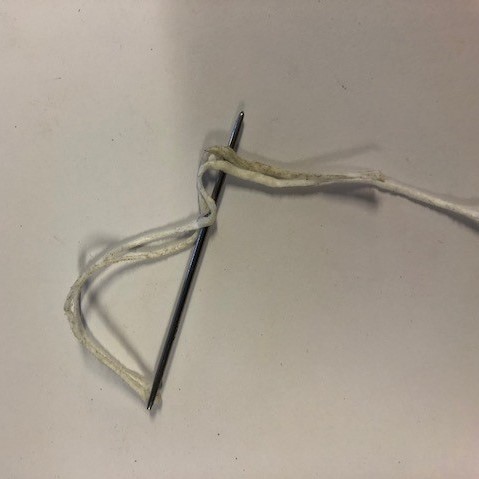

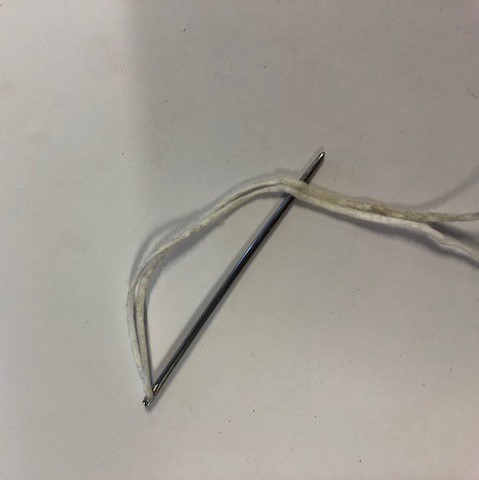

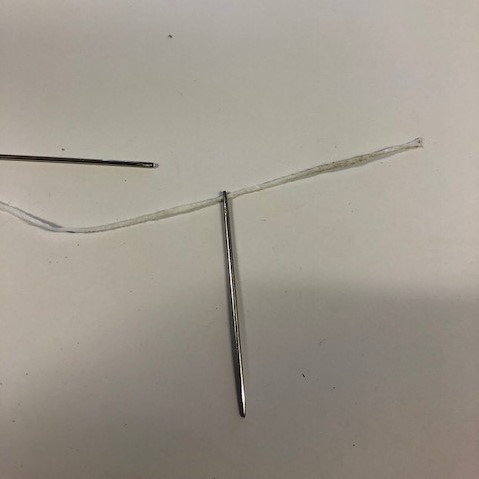

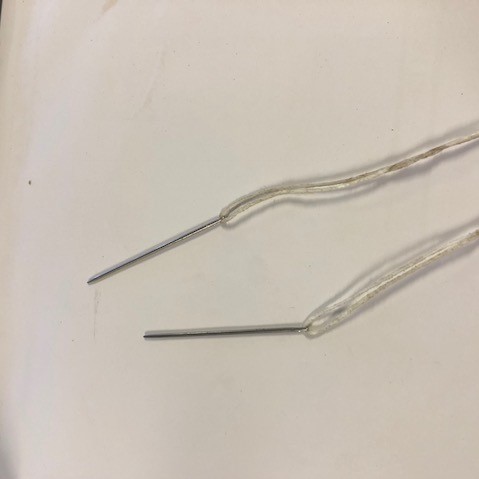

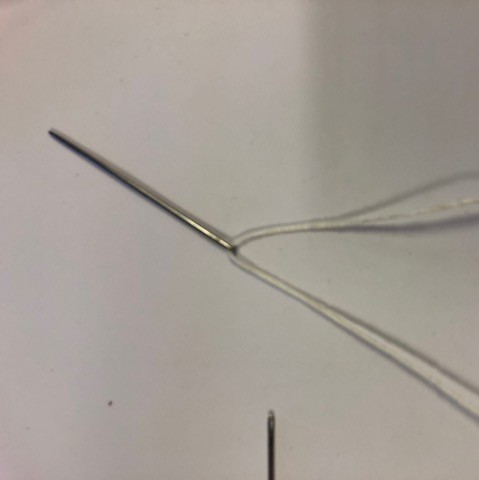

Measure out the amount of thread you will need (a good rule of thumb is 6 x the length you want to stitch. Place one needle on each end of the thread and tie it on. There are several ways to do this but this is the method I use as it places the knot further down the thread and away from the eye of your needle.

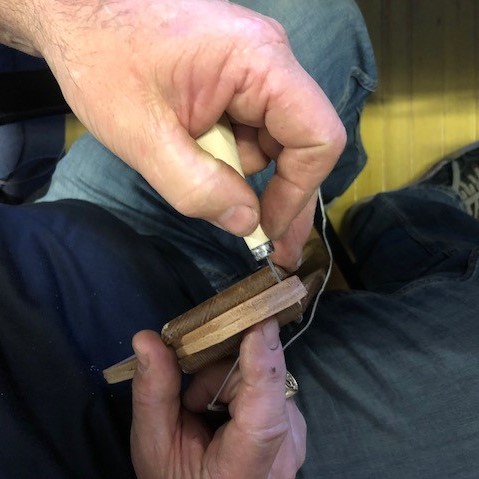

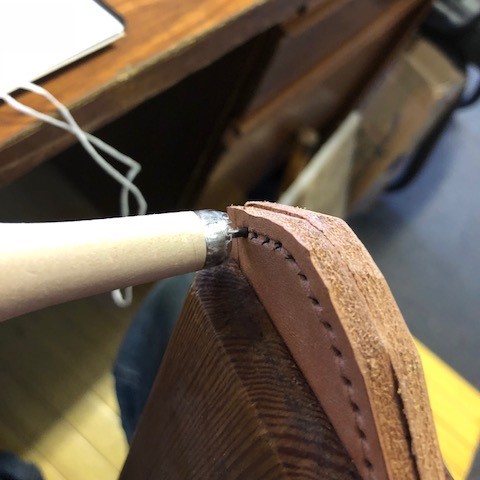

By using a diamond shaped blade of a sewing AWL that’s the same size as your chisel you will be able to complete any of the holes all the way through your job. The Awl will follow the hole made by the chisel but be carful to make sure you come out on the line you made earlier that way you will ensure a neat stitch line on the back of your work.

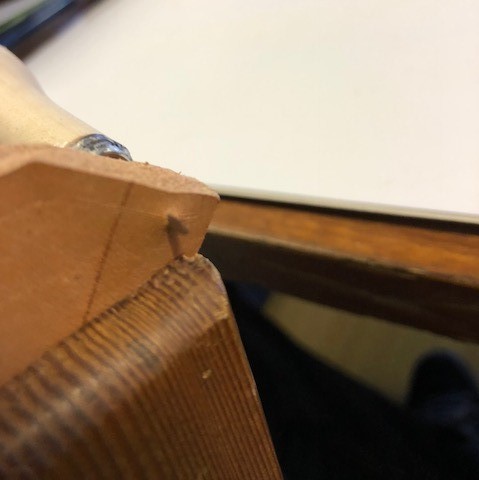

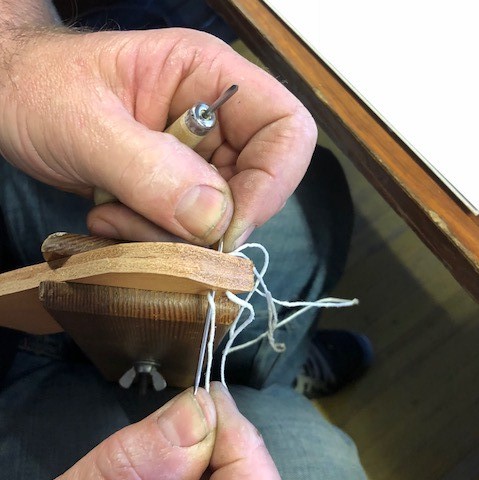

- Place your Awl through the first hole (staying on the line at the back)
- As you pull the Awl out follow it with your first needle.
- Pull the needle through and find the centre of your thread.
- Place your Awl through the second hole, follow it out with the opposite needle
- Pull the needle through past the knot, holding the tread to the back of the hole place your second needle through in the opposite direction.

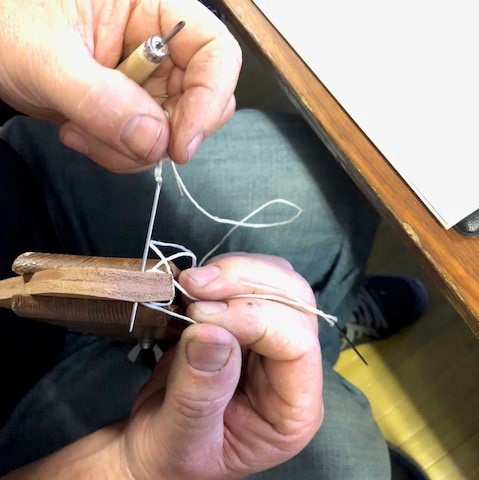

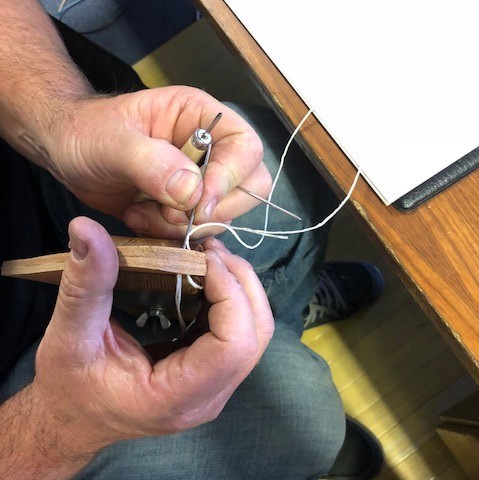

- Before you pull the second needle though completely take one wrap around this needle with the thread from your first needle, this will create a knot and as you pull on both needles this knot will cinch down into the centre of your work. If you continue to do this on every stitch it will lock your stitches and prevent them coming undone if a stitch wares through over time and breaks.
- Continue to the end of what you want to stitch.
- Once at the end you will need to back stitch through the same holes at least three stitches, pull them down snug and cut off nice and close. (you can put a spot of glue on the cut end of the thread to prevent that last stitch from coming undone over time.
- Then finish off by either running an overstitch wheel with the same stitch spacing over your stitching and this will help even out your stitches or place an offcut of leather over your stitches and lightly tap with a hammer, this with flatten out your stitch line.
Good luck and the more you practice the quicker you’ll get !!!

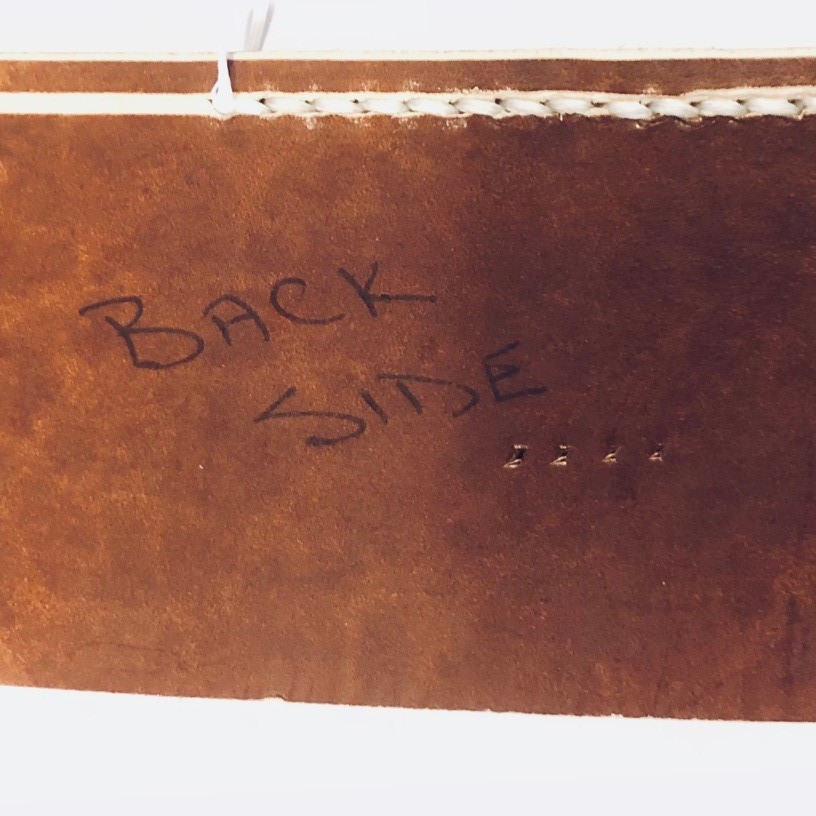

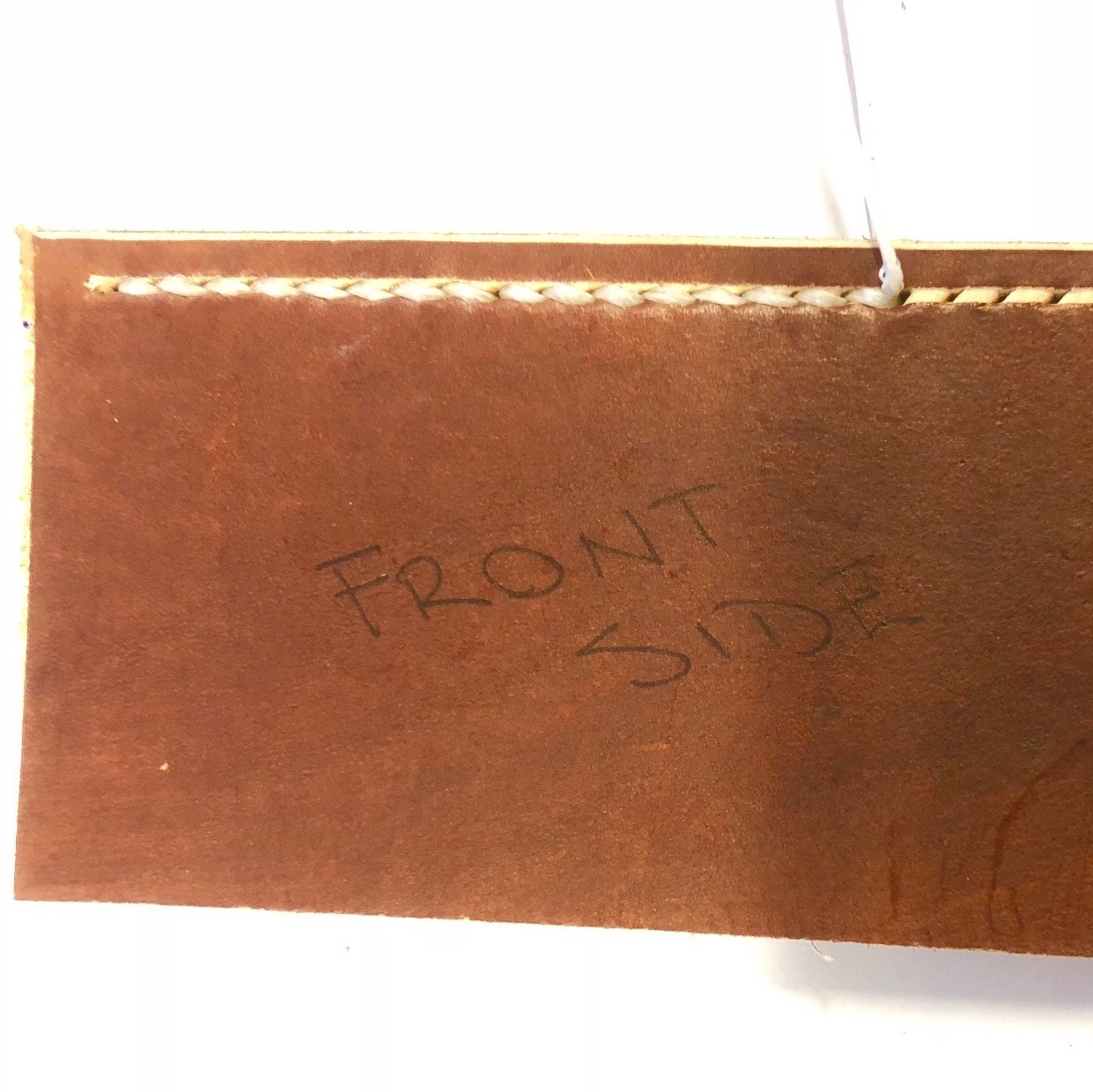

See on the samples below how clean the stitching is on the front and back.
Cheers, Rob Moreton
LEATHERWORK TOOLS AND MATERIALS USED:
- Poly Mallet
- Leatherwork Needle
- Japanese Hand Sewing Set
- Stitching Awl
- Wing Divider
- Stitching Chisel 4 Prong
- Stitchin Chisel 2 Prong
- Optional Dye
we thought we would do a small introduction to Kydex.
I know a lot of you are already familiar with this product and are using it regularly. This is more for those of you that haven’t had the opportunity to have a play with it yet.
Some of you may be thinking it is in the too hard basket and you will need a lot of expensive equipment (industrial ovens, vacuum molding press, bandsaw etc) while these would certainly be handy to have they are not essential and you can make your desired project with a few simple tools.
WHAT IS KYDEX ?
Kydex is a line of thermoplastic acrylic-polyvinyl chloride materials manufactured by Kydex LLC.
What does that mean? It is a sheet of plastic that you can heat up in the oven or with a heat gun and it will become pliable. This will allow you to mold it into any number of shapes including knife sheaths, pistol holsters, credit card wallets or what you can think up to meet your needs. Once it cools it will hold its shape but not be brittle.

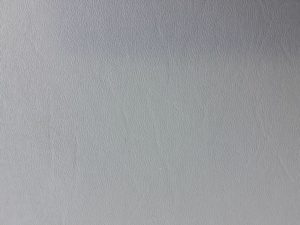

It is available in a number of colours from black, tan, olive green to fluorescent orange, yellow and pink as well as carbon fibre finish or a choice of camouflage patterns.
You can also add layers of kydex back to back to give a thicker wall to your work where you may need extra re-enforcement.
Try using different colours layered together to create a two-tone look to your work (one colour as a liner and a different colour on the outside.
You may be interested to know that you can alter the look of your project by using a spray paint. Simply spray a coat of paint over your work and while it is still wet wipe off the excess. The paint will settle into the textured surface and give you a mottled look. Experiment with different colours and see the effects you can create.
We’ve included some basic instructions for a knife sheath and temperature ranges that may help you get started.

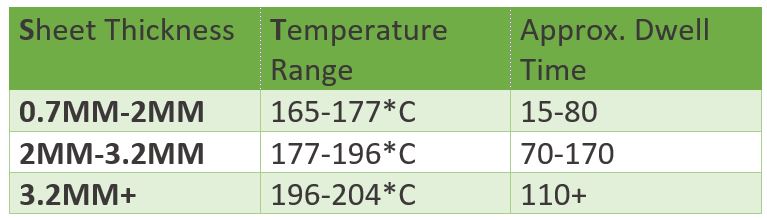

FORMING TEMPERATURE GUIDELINES FOR KYDEX:
Times and temperatures for heating Kydex shown are approximate and should be used as guidelines only.
- Do not exceed 204*C as this will cause the sheet to begin to melt.
TOOLS YOU WILL NEED FOR WORKING WITH KYDEX:
- Box knife
- Rivet setter and rivets

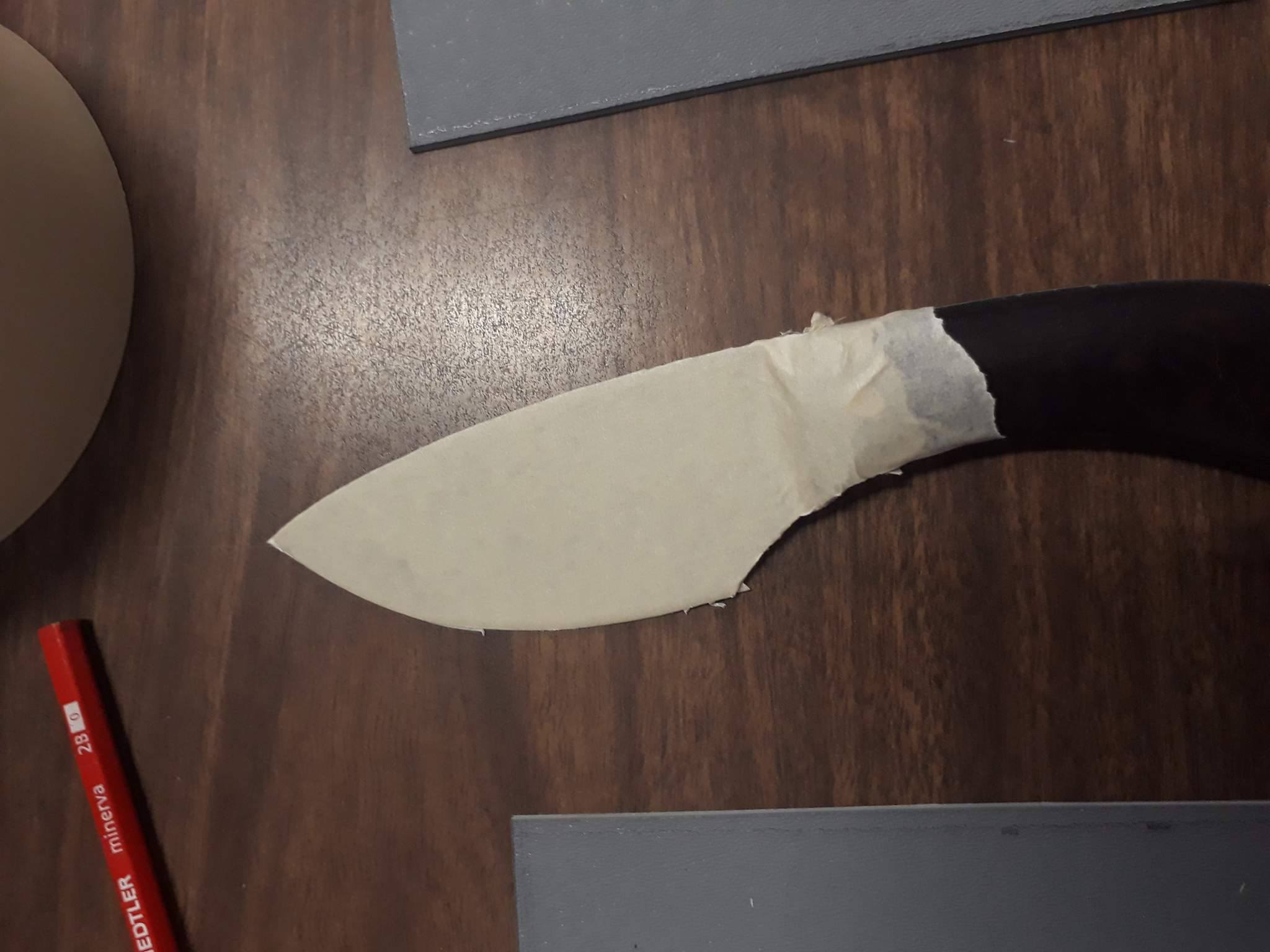

- Masking tape
- Double sided tape

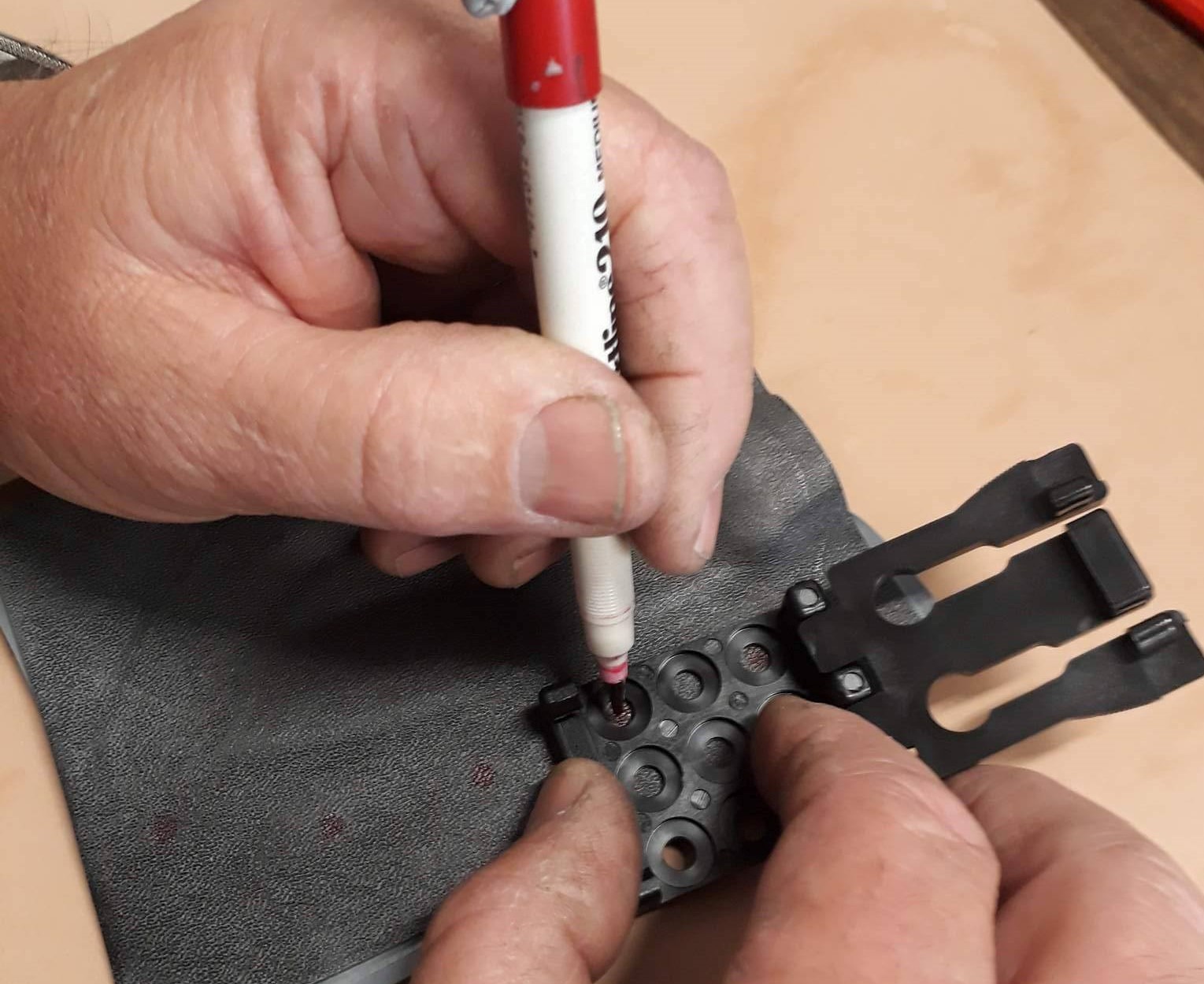

- Tek-lok (optional)
HEATING KYDEX. YOU CAN USE ANY OF THE FOLLOWING.
- TOASTER OVEN
- HEAT GUN

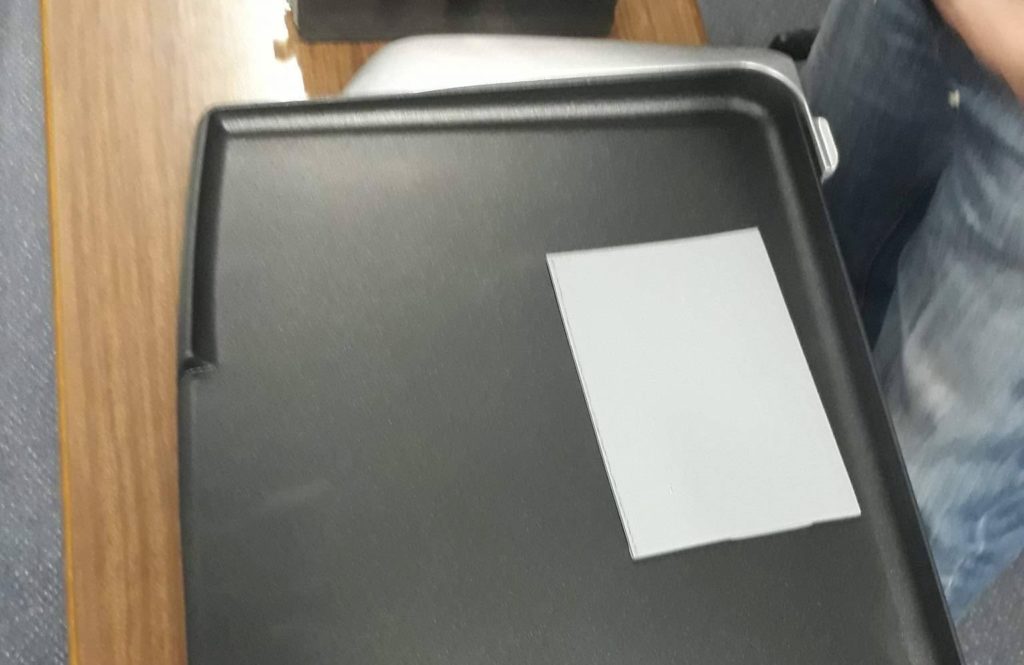

- HOT PLATE

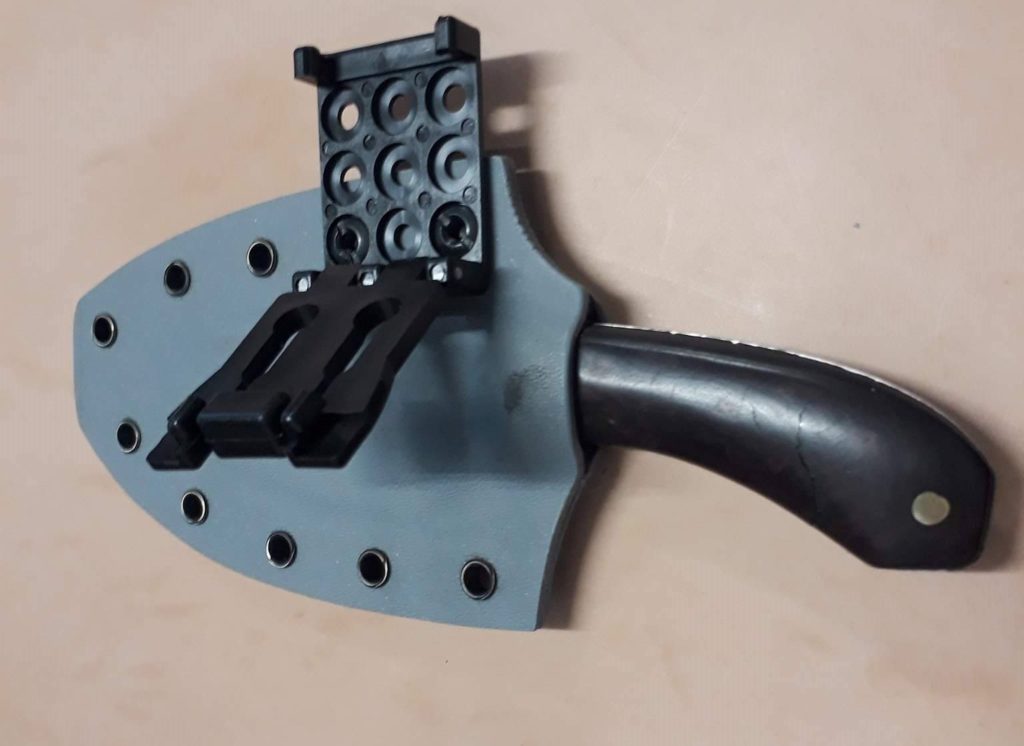

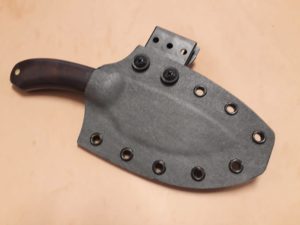

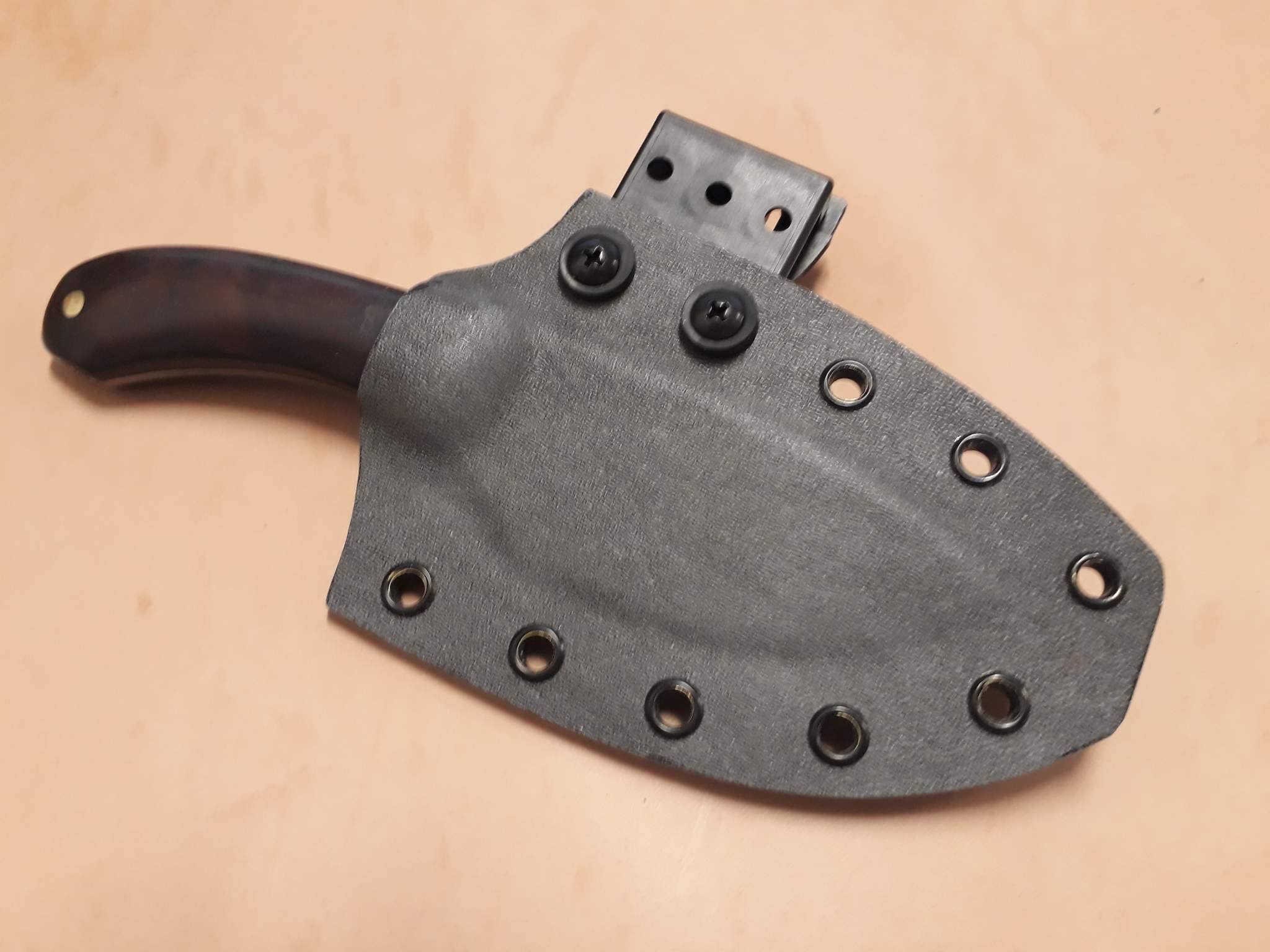

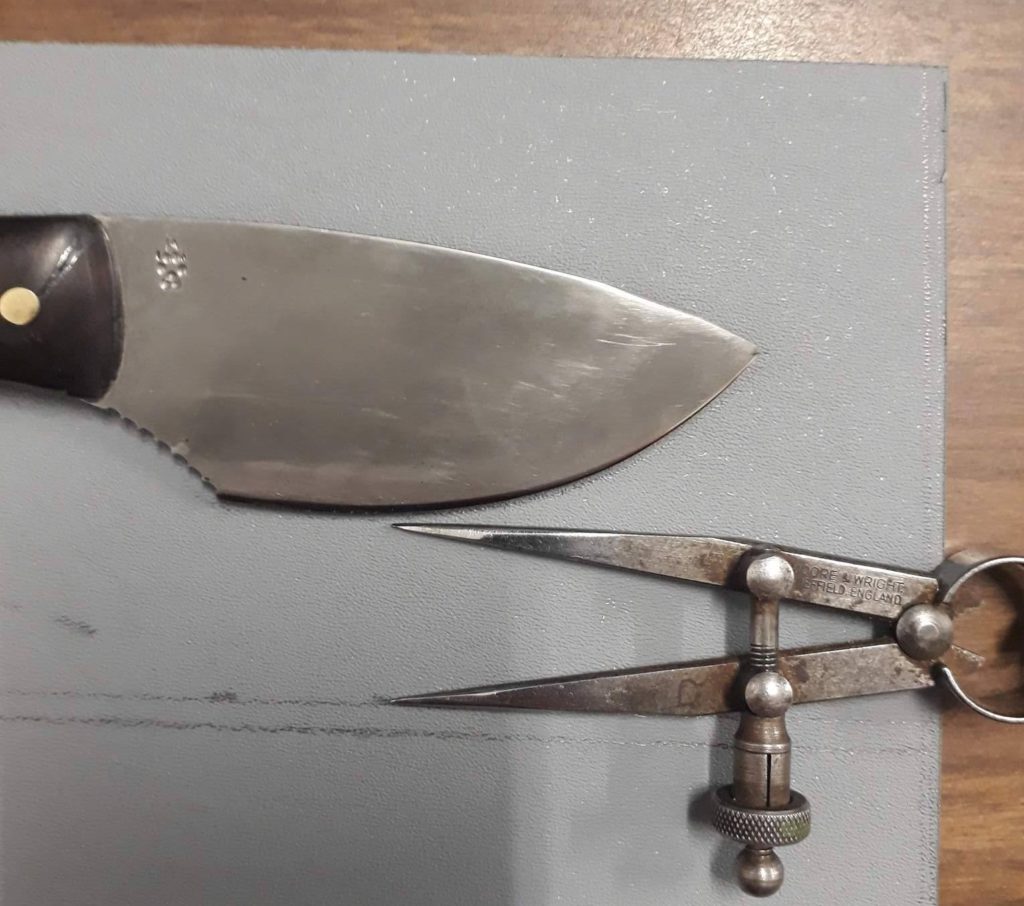

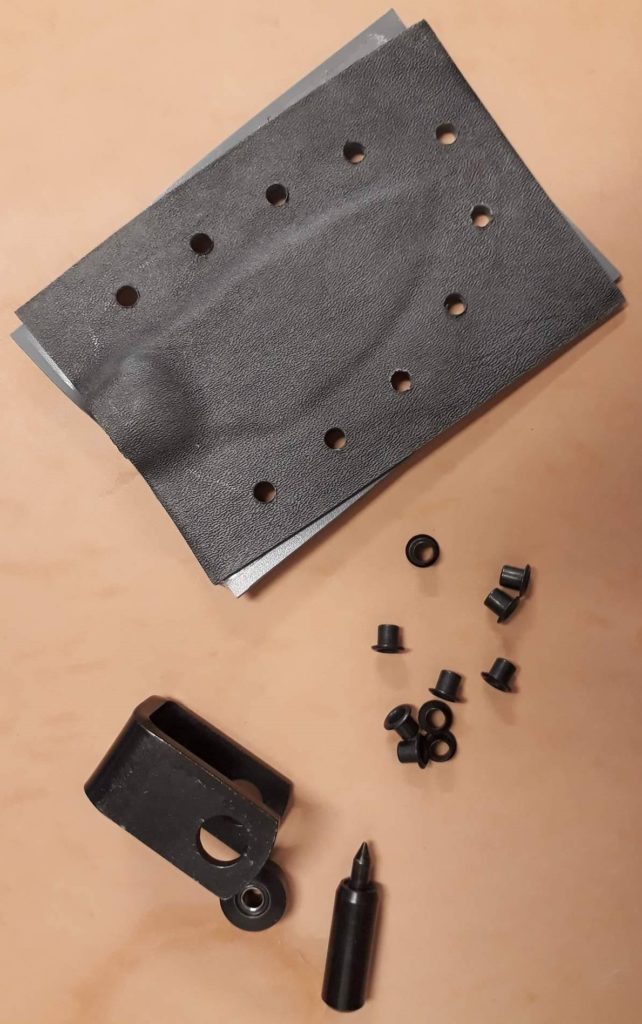

FORMING KYDEX. (KNIFE SHEATH AS EXAMPLE)

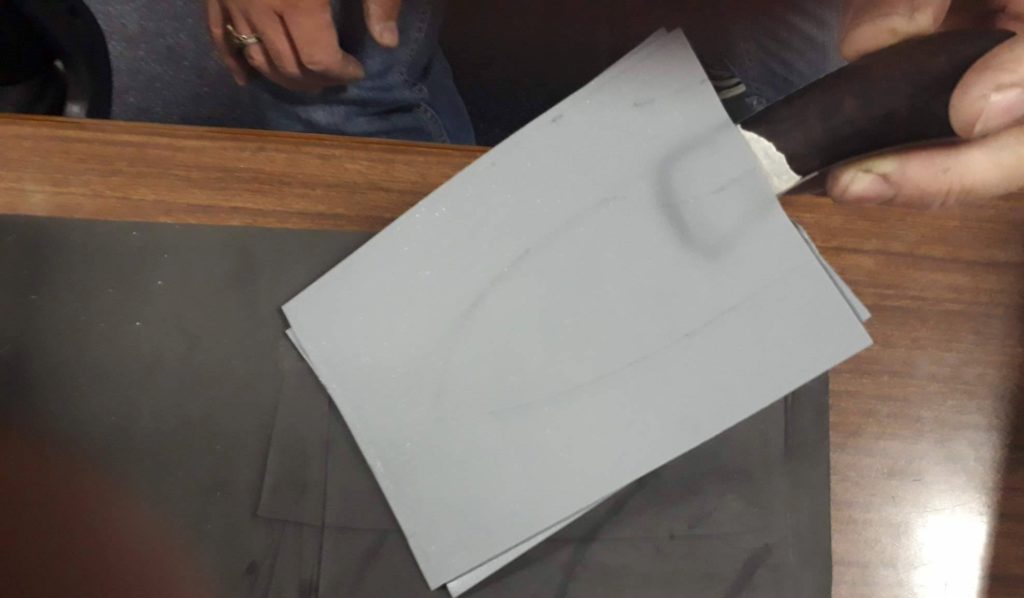

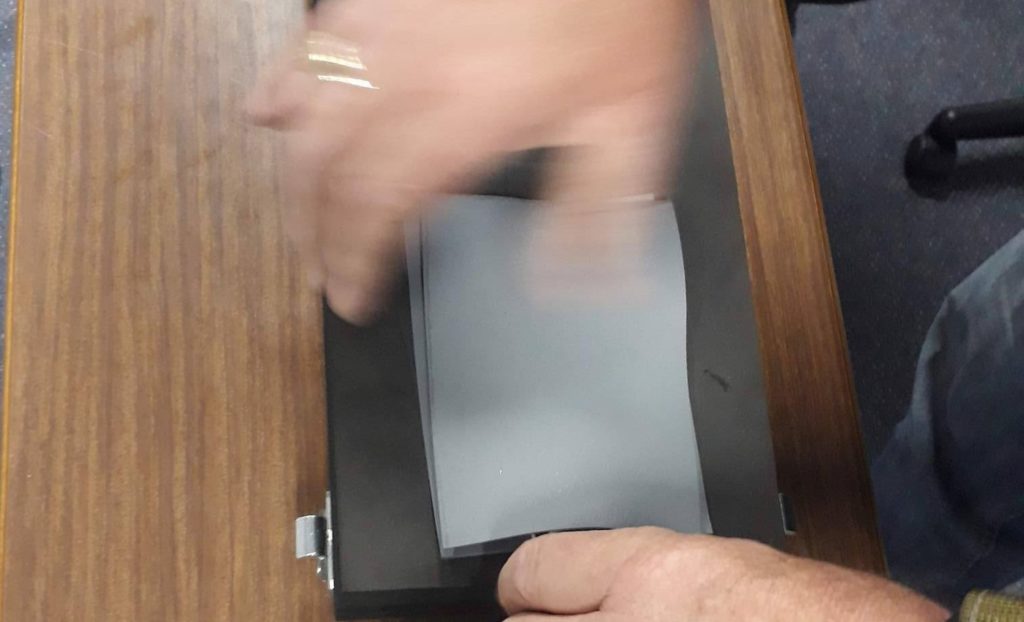

- Once you have heated your sheet and is pliable you will need to form it around your project.
- You can do this a number of different ways (vacuum form or kydex press) or by hand with limited success.
- You will need a Kydex Press foam (heat resistant)
- If using an oven (pre-heat) to recommended temp.
